Product
High precision gas mixing, down to zero flow rate
Laboratory gas mixers blend ambient air with pure bottled gas to create customized mixtures while reducing gas consumption. Conventional systems can require air compressors, mass flow controllers, and moisture management components. Microfluidic applications present challenges at extremely low or variable flow rates, where traditional equipment can sometimes become complex and unreliable. Premaerix provides precise gas mixing and control, is easy to use and affordable.
Product overview

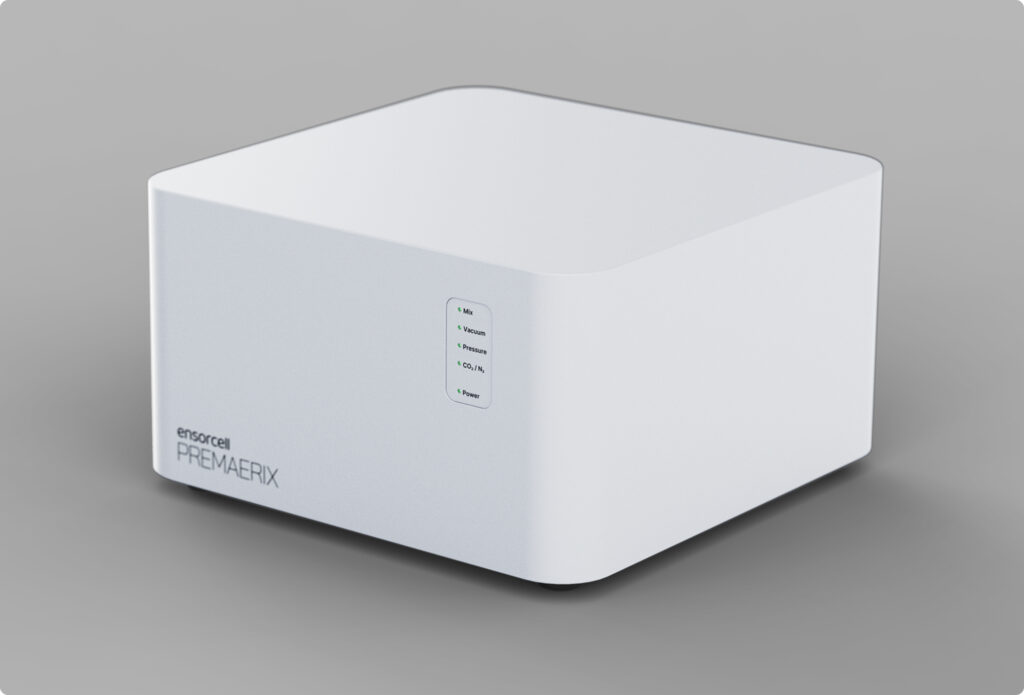

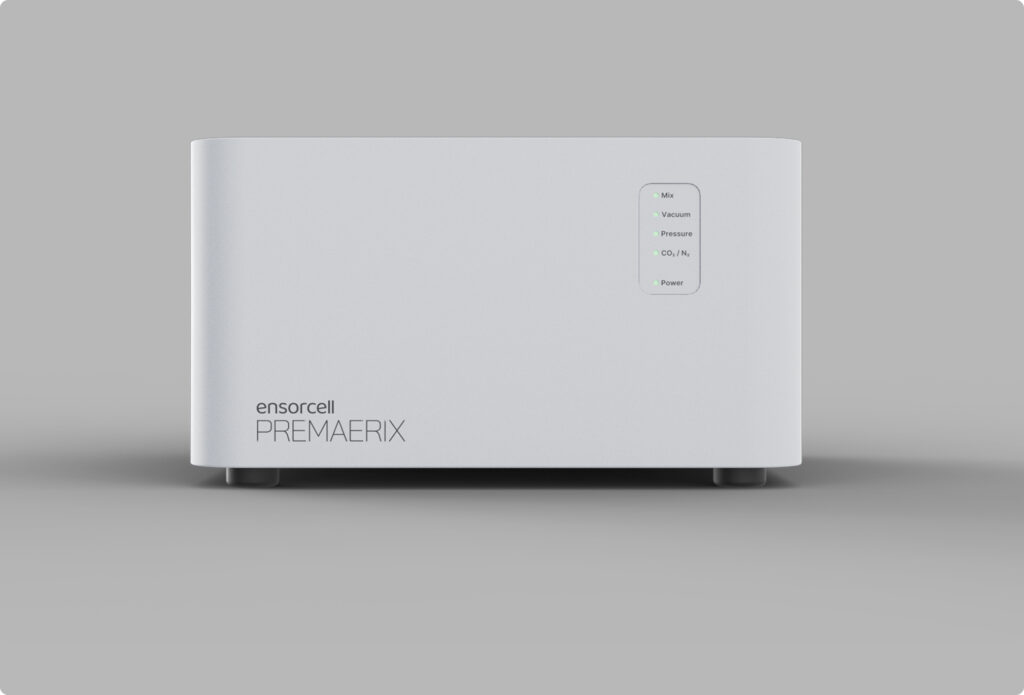

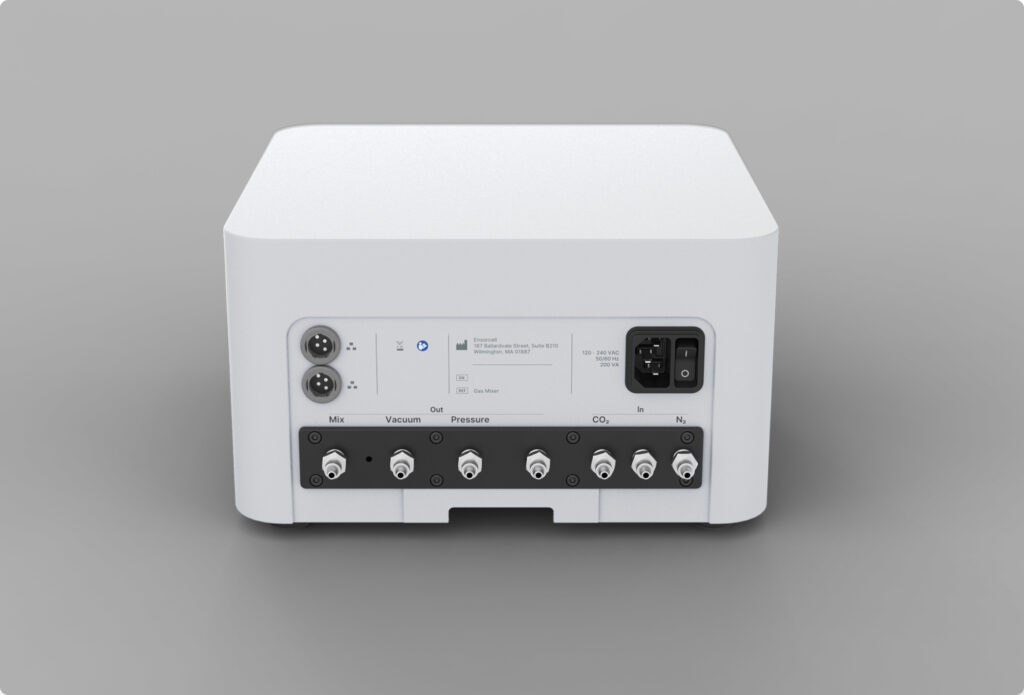

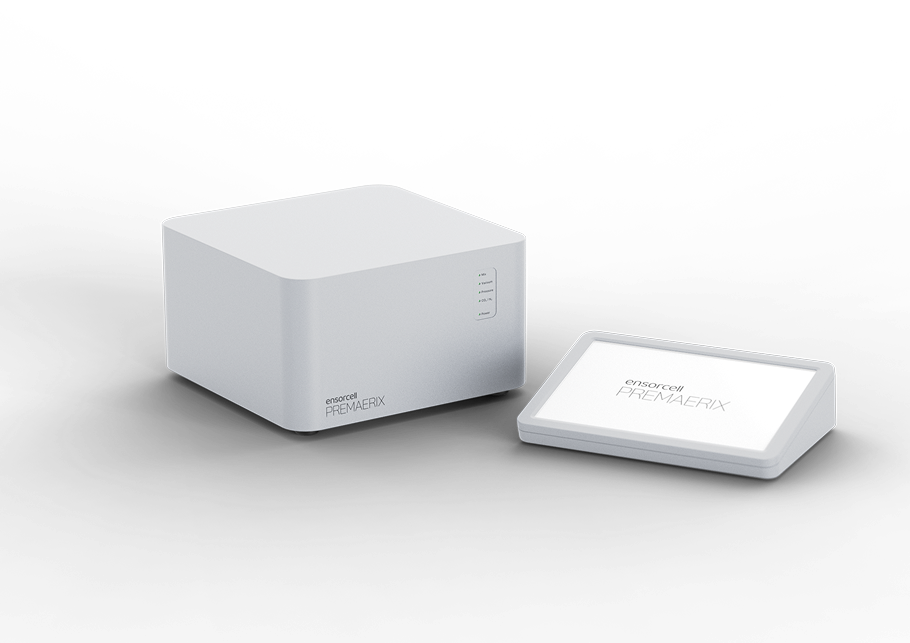

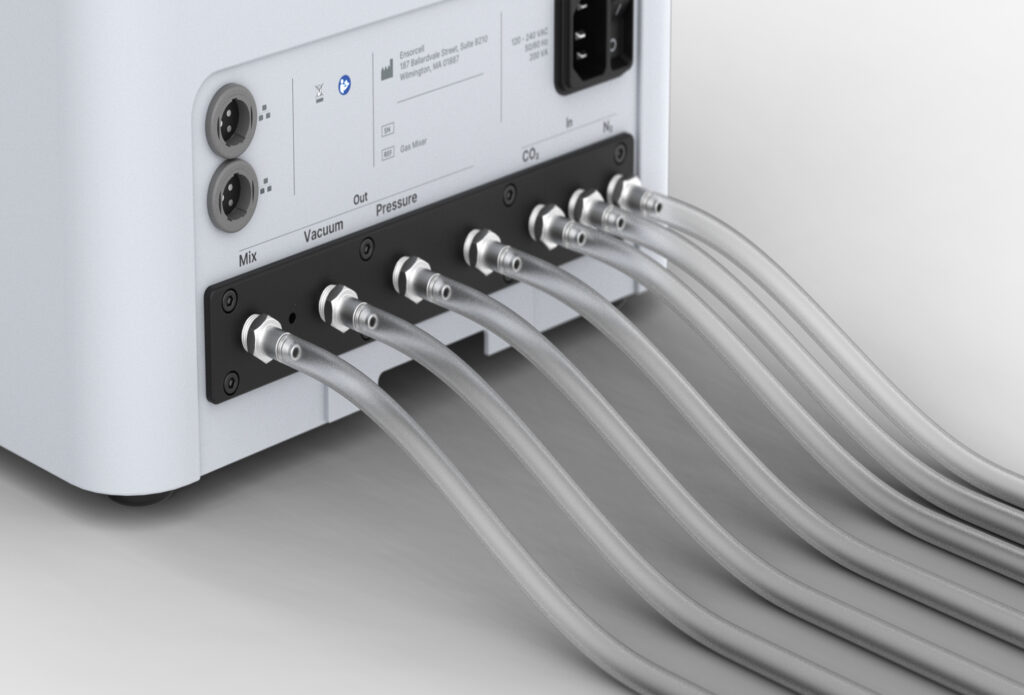

The Premaerix™ Gas Mixer leverages patent-pending technology to solve precision gas concentration challenges across all flow rates, including flow at true zero. This cost-effective, dependable, and durable system provides consistent accuracy in a quiet, compact form factor. Key components include a high-performance, near-silent air compressor and advanced water collection system. Its architecture integrates two subsystems—the primary gas mixing unit and a touch-screen interface with optional external display—linked via CAN bus protocol with API access for alternative control methods.
Product capabilities
Precise
Deliver accurate gas concentrations across flow rates, including zero.
Quiet
Blend seamlessly into lab setups and work quietly with discreet mixing.
Reliable
Minimize reliance on premixed gas cylinders.
Safe
Work safely with a built-in 0.4 micron hydrophobic filter for IEC 61010-1 2017 compliance.
Compact
Save space in crowded labs and countertops.
Affordable
Expertly engineered to deliver maximum cost efficiency.
Key features
Key features
Key features
Key features
Specifications
Power
100 — 240 VAC, 50/60 Hz
C02 pressure
(100%)
40 — 125 psig
Air alternative gas
(Pre-mix)
40 — 45 psig
Communication protocol
CAN Bus
1 – Adjustable pressure vacuum
-5 to 5 psig + / – 0.25% F.S.
2 – Adjustable pressure vacuum
-5 to 5 psig + / – 0.25% F.S.
3 – Adjustable pressure
(pre-mix)
0 to 5 psig + / – 0.25% F.S.
4 – Adjustable pressure
0 to 5 psig + / – 0.25% F.S.
5 – Fixed 5 psig
5 psig + / – 0.1% psig
Output gas concentration
0 to 10% CO2 + / – 0.1%
Flow, rate, maximum
300 SCCM
Flow, rate, minimum
0 SCCM
Gas mixer size
10.3″ W x 10.3″ L x 5.9″ H
Gas mixer weight
20 lb
Gas mixer noise
(pre-mix)
< 45 dB
HMI screen
10.1”, IPS, 1280 x 800
HMI size
9.6″ W x 6.9″ L x 2.4″ H
HMI weight
2.2 lb
Specifications subject to change.
Performance characteristics may vary based on application and operating conditions. Products are intended for research use only and are not intended for diagnostic, therapeutic, or clinical applications.
Resources
Frequently asked questions
Premaerix is designed for high-precision blending of process gases used in cell culture, fermentation, and other life science workflows. It supports carbon dioxide (CO₂) for cell culture chambers, with configurable ports available for other gases, upon request. The system employs digital flow controllers to deliver precise ratios (±0.5% accuracy) across a wide flow range, enabling reproducible gas environments for sensitive applications.
For any technical questions regarding your Premaerix purchase, please contact technical support by filling out the form at ensorcell.bio/technical-support/
